Info

  • 2 x 8"/1 x 1,4", 2-way d'Appolito multifunctional loudspeaker, bass reflex
  • Radiation exchange with rotatable horns 90° x 40° or 60° x 40°
  • High range and speech intelligibility with more direct sound
  • Voice and background music without separate subwoofer
  • Monitor operation possible with 25° and 55°
  • Two discreet handles facilitate handling
  • Click-in flyware, tool-free flight mechanics
  • Tilting pole socket +/- 18°, tilt for a stand or mounting pole

The Voice-Acoustic Score-8 is a passive 2-way system equipped with two 8" drivers transducer in D'Appolito arrangement and a 1.4" compression driver coupled to a rotatable CD horn with either 60° x 40° or 90° x 40° dispersion. With its sleek appearance, the Score-8 looks great in all mobile applications and fixed installations. It sets new standards for compact high-performance loudspeakers.

The above-average performance is also achieved by the horn-loaded design of the 8" transducer. The Score-8 already achieves a sensitivity of 105 dB 1W/1m in the low/mid-range. In the high frequency range, a 1.4" horn is used, which is very large in relation to the cabinet dimensions. This ensures even higher efficiency and a perfect directivity in the upper frequency range. The vertically tight bundling in the low-mid range is also achieved by the D'Appolito arrangement with its physically determined coupling of the 8" drivers. This gives the Score-8 a long range and better speech intelligibility with more direct sound in the listening area.

Due to the horn front of the 8" drivers, the acoustical centre between woofer and tweeter is very close together. This results in a mechanical time alignment with less time offset between the 2-ways and a phase optimization in the crossover area.

The Score-8 uses a newly developed 1.4" neodymium high frequency driver with an innovative composite diaphragm. The material mix of this new dome effectively minimizes unwanted resonances. This results in a detailed and excellent voice and music reproduction with a very warm, natural and clean sound image even at the highest volumes. Combined with the fast response of the 8-inch speakers, the result is an outstanding musical and impulse-focused loudspeaker that meets even the highest sound requirements.

The Score-8 features a 55° and 25° stage monitoring angle. Lying flat across, its low profile also makes it an ideal and very powerful front fill for use on the front edge of the stage. The sophisticated detailed solutions and the very extensive accessories allow a wide range of application and installation possibilities for the Score-8.

With the integrated tiltable speaker flange, the tool-free mountable Easyfly mechanics or the multifunctional L-bracket, as well as U- and C-brackets and various M10, M8 and M6 mounting points, all requirements are covered. A safety cable for secondary safety can be attached to the corrosion-resistant input panel made of V2A stainless steel with a single-stud.

Like the other Voice-Acoustic loudspeakers, the housing is made of sturdy birch plywood of highest quality: CNC milled, grooved, screwed and waterproof glued. The surface is protected by a stable and moisture-resistant polyurea coating in black. White speakers and special colours with 2K textured paint are optional available.

Control

The Score-8 is a passive bass reflex loudspeaker with an impedance of 4 Ω. The internal passive crossover only separates the frequency range. The linearization is done by DSP filters. Operation only with a single 800 W channel of a Voice-Acoustic HDSP system amplifier or self-powered subwoofer!

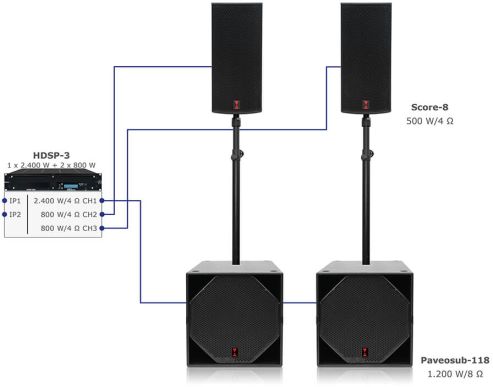

Score-8 via HDSP-3
Score-8 via HDSP-3

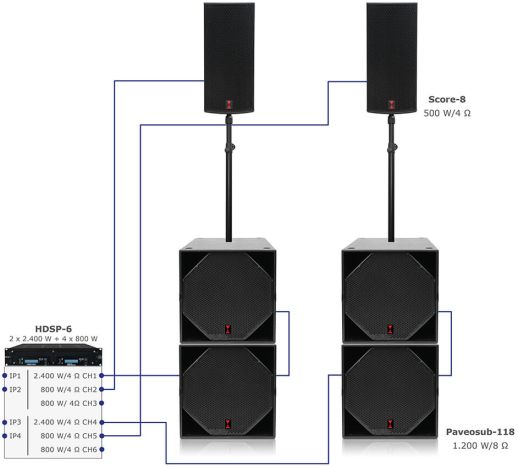

Score-8 via HDSP-6
Score-8 via HDSP-6

Technical Data

Drivers
LF: 2 x 8" Neodym woofer with 2,5“ voice coil
HF: 1 x 1,4“ Ferrit compression driver with 2,4“ voice coil

Frequency range
65 Hz - 19 kHz (- 10 dB)
78 Hz - 17,3 kHz (+/- 3 dB)

Coverage range (h x v)
90° x 40° or 60° x 40°

Impedance
4 Ω

Powerhandling (AES / Programm / Peak)
500 W /1.000 W / 2.000 W

Sensitivity 1 W/1 m
103 dB SPL

Sound pressure at (AES / Programm / Peak)
130 dB SPL / 133 dB SPL / 136 dB SPL

Connection
2 x NEUTRIK NL4 IN/OUT 1+/1- (4-pole looped-through)

Finish
Polyurea coating in RAL 9005. Special colours also possible with Warnex textured paint

Dimensions / Weight
625 (H) x 262 (W) x 337 mm (D) / 19,6 kg

Downloads

Accessoires

Transport and rain cover Score-8

Item no. 508001000

Transport and rain cover for Score-8, stable Cordura fabric with padding, all handles and connections are cut. The front can be folded to the side, behind it there is a sound-permeable gases as rain protection for outdoor applications.

Flightcase for Score-8

Item no. 5080030000

Heavy-duty flightcase for up to two Score-8. Extra compartment for various accessories, 4 Blue Wheels, 4 large butterflys, 6 large folding handles and 4 stacking recesses in the lid. 9 mm wood with black and scratch-resistant surface, stable 35 x 35 mm edge profile with 2.5 mm material thickness and 5 mm outer radius and recessed rivet groove. Dimensions/Weight: 785 (h) x 385 (w) x 669 mm (d) / 32 kg.

L-bracket Score-8

Item no. 408001001

Multifunctional bracket for Score-8 speakers. The bracket is mounted on the back in seconds without tools. This is done vertically or horizontally by means of camlock connectors. With appropriate accessories, the speaker can be used on a tripod or flown upright.

Truss clamp with 50 mm width

Item no. 999982301

With this traverse clamp you can easily and loosely mount your devices to all common traverses with 48-51 mm strap tubes. The clamp impresses with its compact design, its lightness and the maximum tensile load of 500 kg. Locking screw M8 Wing nut and device screw M10. Width: 50 mm.

Truss clamp adapter

Item no. 408001101

The truss clamp adapter has been specially developed for the Score loudspeaker's multifunction bracket. In combination with the truss clamp, the multi-function bracket can then be continuously tilted forwards or backwards, or can also be used as a wall and ceiling bracket.

Tripod transducer with threaded pin

Item no. 999924521

Tripod transducer with threaded pin M10 x 12 mm and large clamping screw for locking to the tripod. For all common speaker stands with Ø 35 mm.

U-bracket for Score-8

Item no. 408002001

Stable swivel bracket for installation on trusses and ceiling. 2 x M10 hexagon head screws included in delivery.

C-bracket for Score-8

Item no. 408003001

Stable swivel bracket for vertical or horizontal installation on trusses, walls and ceiling. 2 x M10 hexagon head screws included in delivery.

Hand lever M10 x 30 mm

Item no. 600781030

Hand lever M10 x 30 mm, adjustable, flat design, steel black burnished with plastic lever, suitable for all U- and C-brackets.

Flat knurled screw M10 x 25 mm

Item no. 999910251

Flat knurled screw M10 x 25 mm, steel black burnished for all u- and c-brackets. As an alternative to the hexagonal bolts supplied with the brackets.

Easyfly-mechanics

Item no. 409991001

Tool-free flight-mechanics for clicking and exact alignment of the speaker in the horizontal and vertical axis. Removable recording for example the self-lock clamp included.

Carrying bag for Easyfly-Mechanics

Item no. 409992000

Carrying bag for up to two Easyfly-Mechanics with attached truss clamp plus accessory compartment for e.g. two safetys with single studs.

Self-lock clamp

Item no. 999950731

Loudspeakers can be flown by one person with the self-lock clamp. The clamp hooks directly into the truss and can be easily tightened. Load capacity 250 kg.

Multifunctional rotating ceiling bracket

Item no. 409998001

For hanging speakers from ceilings using steel cables or chains and various accessories. Horizontal alignment due to central pivot axis. Max. load: 60 kg. Available in white and black. Supplied without further mounting accessories.

Universal suspension device for flight mechanics

Item no. 409992001

For suspending speakers from very high ceilings or trusses. Prevents speakers from twisting due to two parallel steel cables or chains and allows horizontal alignment due to central pivot axis. Suitable for Easyfly mechanics, LA-Stick flying mechanics, Ikarray-8 flying mechanics and all U- and C-brackets. Delivery without further mounting accessories.

Tilting and swivelling wall holder

Item no. 999924481

Wall holder with large wall plate for heavy boxes. The mounted box can be swivelled sideways and tilted up to 30 °. Easy installation due to practical mounting and screwing. Max. load capacity: 25 kg. Available in white and black.

Wall mount with extension

Item no. 409994031

Wall mount with extension (180° horizontal and 30° vertical adjustment) for parallel positioning. Max. Load capacity: 25 kg. Available in white and black.

Wall holder can be swiveled and tilted

Item no. 999924173

Wall holder with tilt and swivel orientation: 145° horizontal, 30° vertical. The inclination can be fixed in 6 steps. The distance to the wall can be selected in 3 steps. With receptacle for high stand flange. Holder is almost completely covered by the speaker. Max. Load capacity: 25 kg.

Tilting and swivelling wall holder XL

Item no. 999924120

Stable wall holder with tilt and swivel orientation: 180° horizontal, 22° vertical adjustable in 11 steps. Expanding mandrel for play-free seating in the tripod base of the speaker. Max. load capacity: 50 kg.

Wall- and Trussholder

Item no. 999924150

Wall- and Trussholder with a joint and a tube clamp, circa 520 mm long. Max. load capacity: 50 kg.

Wall console for flight hardware

Item no. 409994901

Wall mount bracket made of steel with aluminium tube for hanging loudspeakers on walls by using truss clamps and loudspeaker-specific flying hardware. The outriggers of the wall bracket have a row of holes so that the truss clamps, which hold the aluminium tube, can be repositioned. This allows the distance between the speakers and the wall to be varied. All components are black powder-coated. Delivery includes: 2 x wall console, 2 x truss clamps, 1 x 600 mm aluminium tube 50 x3 mm, 2 x plastic caps for the tube. Max. load 75 kg, static calculation available.

Single stud

Item no. 999957450

Single stud for securing a loudspeaker with safety cable.

Eye Bolt

Item no. 999917370

M10 x 40 mm eyebolt, screws into M10 mounting points on the Score-8 to allow the speaker to be suspended using chains or steel cables without the need for additional hardware such as brackets or Easyfly mechanics.

Screwable quick connect

Item no. 999908000

Screwable quick connect member for e.g. single and double stud fittings or safetys.

Safety 6/1000

Item no. 999963100

1 m safety cable 6 mm Ø for securing a suspended loudspeaker. One side with a screwable quick connect.

Speaker stand crank

Item no. 999921300

Stable stand for cranking with double protection against falling. Height: 139 to 218 cm. Max. load capacity: 50 kg.

Speaker stand

Item no. 999921467

Stable stand with expanding mandrel system which provides a tight and firm fit for the speaker. Double protection against falling. Height: 132 - 220 cm. Max. load capacity: 50 kg.

Distance rod with crank

Item no. 999921340

Distance rod for cranking with expanding mandrel system which provides a tight and firm fit for the speaker. Height: 92 - 152 cm. Max. load capacity: 50 kg.

Telescopic rod

Item no. 999921368

Telescopic rod with expanding mandrel system for play-free seating in the tripod base. Height: 110 to 180 cm. Max. load capacity: 35 kg.

Ring-Lock adapter

Item no. 999921441

Adapter for mounting on stands or speaker rods. With Expanding mandrel system which provides a tight and firm fit for the speaker.

Iron base with weight plate

Item no. 999912311

The set includes a flat 10 kg iron base Ø 45 and a 5 kg weight disc. It is suitable distance rods with an M20 screw thread. The weight disc can be mounted tool-free.

Carrying bag for round base Ø 45 cm

Item no. 999912399

Padded bag made of robust, water-repellent nylon, with space for a round base Ø 45 cm with weight disc. The bag has two carrying straps with a soft velcro handle, a sturdy zipper and a transparent window for labels.

Iron base

Item no. 999926705

The iron base 55 x 55 cm has a carrying handle and a cable bushing. The base is suitable distance rods with an M20 screw thread. Weight: 13,5 kg.

Carrying bag for iron base

Item no. 999933100

Padded bag made of robust, water-repellent nylon, with space for a iron base 55 x 55 cm. The bag has a padded handle and a stable zipper.

Carrying bag for 2 x speaker stand/ rod

Item no. 999920000

Carrying bag for two speaker stands or distance rods, also with crank. Two inside compartments with zipper and sturdy handles. Material waterproof nylon.

1.4" Horn 60° x 40°

Item no. 999146040

1.4" removable horn with 60° x 40° radiation, rotated at 40° x 60°. Stable cast aluminium thus not cancel the driver unit possible.

1.4" Horn 90° x 40°

Item no. 999149040

1.4" removable horn with 90° x 40° radiation, rotated at 40° x 90°. Stable cast aluminium thus not cancel the driver unit possible.

Cable Clip for speaker stand/ rod

Item no. 999935000

The cable clip made of robust, durable ABS plastic is specially designed for speaker stands and distance rods with 35 - 36 mm tube. It adheres firmly to the tube and holds the cables securely and neatly in the 24 x 16 mm guide accessible from the outside.

speakON cable 0.5/1/3/6/10/15/20/30 m

Item no. 80440XXX1

Speaker cables in various lengths with Neutrik plug NL4FX. 4 x 4 sq mm, each wire 224 x 0.15 copper, diameter 11 mm, weight 273 g / m. Assembled with some pressed ferrules for maximum contact area and minimal contact resistance.

speakON adapter

Item no. 999654669

Adapter to connect two speaker cables.
