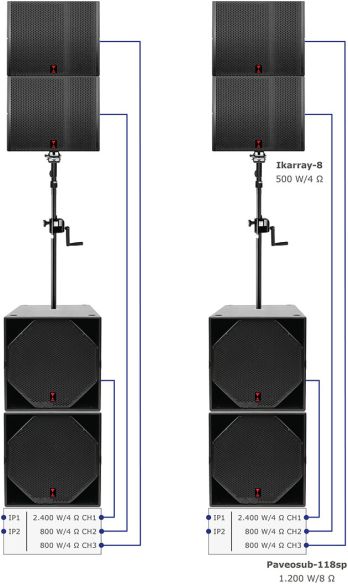

The Ikarray-8 set consists in the standard configuration of two Paveosub-118sp, two Paveosub-118 and two Ikarray-8 /100° x 15° and 100° x 5° each.
The Ikarray-8 is a novel concept plug&play line-array with incredible power densitity: 2 x 8" and 4 x 1" drivers are stacked vertically in a compact housing. Few elements of this system are needed to achieve acoustically effective length and great range. It closes the gap between conventional loudspeakers and line-arrays.
Contrary to conventional line-arrays there is no need for the user to deal with simulation software, splay angles, rigging hardware and DSP filters. Ikarray-8 comes precurved and elements are simply connected to each other at fixed angles. For greater flexibility and scalability array elements will be available with 5°x 100° and 15°x 100° directivity pattern. This way, several units can be connected without vertical coverage becoming too big. This results in higher achievalble SPL and headroom compared to other fixed-angle system which are limited to fewer elements.
The continuous steel rigging system is concealed within the cabinet and there are no protruding metal parts. This imparts the system with an elegant and unobtrusive appearance, suitable for sophisticated demands in mobile and especially installation application. Stacking feet and their corresponding slots allow immediate and easy cabinet alignment and connection via ball lock bolt. 4 handles provide optimum handling.
Ikarray-8 comes with an innovative 2-in-1 rigging and polemount hardware. For either use it can be fixed without tools on the top or bottom of the cabinet. A slider with threaded spindle allows for continuous tilting without the center of gravity shifting forward or backward. It stays centered on the polemount and the array does not become top-heavy.
The 8" woofers have been recessed to optimize the time alignment for the passive crossover. On the other hand the recess has been used to provide the woofers with additional horn loading. The horn flare also makes sure that criteria for a coherent wavefront are met by forming a narrow rectangular outlet. Voice-Acoustic HDSP amplifiers and self-powered subwoofers contain presets for all 5° and 15° combinations and guarantee optimum performance.
Voice-Acoustic HDSP amplifiers and self-powered subwoofers contain presets for all 5° and 15° combinations and guarantee optimum performance.
Accessoires
Ikarray-8/15° and 5° transport cover
Item no. 501801000
Transport cover for both Ikarray-8 models, sturdy Codura fabric with padding, all handles are cut out.
Flightcase for Ikarray-8
Item no. 501803000
Heavy-duty flightcase for up to two Ikarray-8/15° or 5° line array elements. 4 Blue Wheels, 8 large folding handles and 4 stacking recesses in the lid. 9 mm wood with black and scratch-resistant surface, sturdy 35 x 35 mm edge profile with 2.5 mm material thickness and 5 mm outer radius and recessed rivet groove. Dimensions/Weight: 680 (h) x 800 (w) x 600 mm (d) / 43,1 kg.
Ikarray-8 flight mechanics
Item no. 401802000
Tool-free flight mechanism for exact alignment of the Ikarray-8 in the vertical axis.
Self-lock clamp
Item no. 999950731
Loudspeakers can be flown by one person with the self-lock clamp. The clamp hooks directly into the truss and can be easily tightened. Load capacity 250 kg.
M10 Eyebolt
Item no. 9999OM_DELTAOB-10
Eyebolt M10 high load, red, steel grade 8, WLL 0° 1000kg load capacity with 4-fold safety.
M10 lock nut
Item no. 985-SVZVE-010
M10 lock nut DIN 985 / DIN EN ISO 10511 low form black galvanised class 8.
Shackle 1.5t
Item no. 9999HSL_MB-00150
Shackle 1.5t curved with nut and safety split pin, 1500kg load capacitiy with 5-fold safety, breaking strength 9000kg.
Ikarray-8 extension of flight mechanics
Item no. 401804000
Optional for extending the flight mechanics to achieve a downward radiation, e.g. from high ceilings.
Wall console for flight hardware
Item no. 409994901
Wall mount bracket made of steel with aluminium tube for hanging loudspeakers on walls by using truss clamps and loudspeaker-specific flying hardware. The outriggers of the wall bracket have a row of holes so that the truss clamps, which hold the aluminium tube, can be repositioned. This allows the distance between the speakers and the wall to be varied. All components are black powder-coated. Delivery includes: 2 x wall console, 2 x truss clamps, 1 x 600 mm aluminium tube 50 x3 mm, 2 x plastic caps for the tube. Max. load 75 kg, static calculation available.
Universal suspension device for flight mechanics
Item no. 409992001
For suspending speakers from very high ceilings or trusses. Prevents speakers from twisting due to two parallel steel cables or chains and allows horizontal alignment due to central pivot axis. Suitable for Easyfly mechanics, LA-Stick flying mechanics, Ikarray-8 flying mechanics and all U- and C-brackets. Delivery without further mounting accessories.
Ikarray-8 tripod option for flight mechanics
Item no. 401803000
Optional extension of the flight mechanics to operate up to two Ikarray-8 on one tripod or spacer rod.
Tripod transducer with threaded connection
Item no. 999924528
The tripod transducer is suitable for all common speaker stands with Ø 35 mm. With M10 threaded connection and large clamping screw for locking to the tripod.
Ground stacking adapter
Item no. 401805000
Mounting plate for the Ikarray-8 flight mechanics. The Ground stacking adapter is mounted on the M20 flange of a subwoofer. Optional extension of the flight mechanics to operate the Ikarray-8 Line Array stacked on subwoofers.
Carrying bag for Ikarray-8 mechanics
Item no. 501802000
Carrying bag for up to two flight mechanics or groundstacking adapter with accessories. Includes partition wall and additional front pocket for accessories.
Speaker stand crank
Item no. 999921300
Stable stand for cranking with double protection against falling. Height: 139 to 218 cm. Max. load capacity: 50 kg.
Ring-Lock adapter
Item no. 999921441
Adapter for mounting on stands or speaker rods. With Expanding mandrel system which provides a tight and firm fit for the speaker.
Distance rod with crank
Item no. 999921340
Distance rod for cranking with expanding mandrel system which provides a tight and firm fit for the speaker. Height: 92 - 152 cm. Max. load capacity: 50 kg.
Carrying bag for 2 x speaker stand/ rod
Item no. 999920000
Carrying bag for two speaker stands or distance rods, also with crank. Two inside compartments with zipper and sturdy handles. Material waterproof nylon.
Cable Clip for speaker stand/ rod
Item no. 999935000
The cable clip made of robust, durable ABS plastic is specially designed for speaker stands and distance rods with 35 - 36 mm tube. It adheres firmly to the tube and holds the cables securely and neatly in the 24 x 16 mm guide accessible from the outside.
Transport and rain cover Paveosub-118
Item no. 501181000
Transport and rain cover for Paveosub-118/118sp, stable Cordura fabric with padding, all handles and connections are cut.
Detachable wheelboard Paveosub-118
Item no. 501184000
Detachable wheelboard to mount on Paveosub-118/118sp, 15 mm wood with polyurea coating, stackable, 2 butterfly locks, 2 handles, 4 black wheels, engraved logo.
Flying plate Paveosub-118
Item no. 40118001-9005
Set of 2 flying plates and screwes for Paveosub-115/-118. Mounted with M10 screws at the side thread points with integrated steel brackets of the subwoofer cabinet (from model year 2022). The upper row of holes allows the subwoofer to be rigged with clamps to a 29cm or 40cm truss, to be suspended with ring eyelets or to be mounted directly in ceilings with heavy-duty dowels.
Flight connectors Paveosub-118
Item no. 40118002-9005
Set of 4 connectors and screws for suspending the Paveosub-118 subs among each other. The load suspension is steel-in-steel with M10 screws.
speakON cable 0.5/1/3/6/10/15/20/30 m
Item no. 80440XXX1
Speaker cables in various lengths with Neutrik plug NL4FX. 4 x 4 sq mm, each wire 224 x 0.15 copper, diameter 11 mm, weight 273 g / m. Assembled with some pressed ferrules for maximum contact area and minimal contact resistance.
speakON adapter
Item no. 999654669
Adapter to connect two speaker cables.
PD-32-6 V2 TRUE1
Item no. 999492020
19"/3 HE intelligent 32A power distributor, suitable for applications in temporary and permanent installations. 32 A CEE Input, 6 x Schuko Output in parallel 6 x Neutrik powerCON TRUE1 Output, 1 x 16 A CEE, 6 x independent circuits (RCBO) and precise multi meter.
PD-32-6 V2 powerCON
Item no. 999492010
19"/3 HE intelligent 32A power distributor, suitable for applications in temporary and permanent installations. 32 A CEE Input, 6 x Schuko Output in parallel 6 x Neutrik powerCON Output, 1 x 16 A CEE, 6 x independent circuits (RCBO) and precise multi meter.
PD-32-6 V2 Multipin
Item no. 999492030
19"/3 HE intelligent 32A power distributor, suitable for applications in temporary and permanent installations. 32 A CEE Input, 6 x Schuko and 1 x Multipin ILME 16 pol. Output, 1 x 16 A CEE, 6 x independent circuits (RCBO) and precise multi meter.
BAGAX 2HE/19" SDS Stack-Rack
Item no. 9B1910002
SDS Stack-Rack (Slide-Door Shockmount) with retractable lids, label holder on front lid, external lock and recessed handles. Rack rails adjustable from outside with built-in device. Cable bushing for interconnecting cables with closed lid. Dimensions (HxWxD): 156 x 600 x 600 mm.
BAGAX 3HE/19" SDS Stack-Rack
Item no. 9B1910003
SDS Stack-Rack (Slide-Door Shockmount) with retractable lids, label holder on front lid, external lock and recessed handles. Rack rails adjustable from outside with built-in device. Cable bushing for interconnecting cables with closed lid. Dimensions (HxWxD): 201 x 600 x 600 mm.
BAGAX 4HE/19" SDS Stack-Rack
Item no. 9B1910004
SDS Stack-Rack (Slide-Door Shockmount) with retractable lids, label holder on front lid, external lock and recessed handles. Rack rails adjustable from outside with built-in device. Cable bushing for interconnecting cables with closed lid. Dimensions (HxWxD): 225 x 600 x 600 mm.
BAGAX 6HE/19" SDS Stack-Rack
Item no. 9B1910006
SDS Stack-Rack (Slide-Door Shockmount) with retractable lids, label holder on front lid, external lock and recessed handles. Rack rails adjustable from outside with built-in device. Cable bushing for interconnecting cables with closed lid. Dimensions (HxWxD): 336 x 600 x 600 mm.
BAGAX 2HE/19"/ED SDS Stack-Rack
Item no. 9B1920002
ED SDS Stack-Rack (Extra Deep Slide-Door Shockmount) with retractable lids, label holder on front lid, external lock and recessed handles. Rack rails adjustable from outside with built-in device. Cable bushing for interconnecting cables with closed lid. Dimensions (HxWxD): 156 x 600 x 780 mm.
BAGAX 4HE/19"/ED SDS Stack-Rack
Item no. 9B1920004
ED SDS Stack-Rack (Extra Deep Slide-Door Shockmount) with retractable lids, label holder on front lid, external lock and recessed handles. Rack rails adjustable from outside with built-in device. Cable bushing for interconnecting cables with closed lid. Dimensions (HxWxD): 225 x 600 x 780 mm.
BAGAX 6HE/19"/ED SDS Stack-Rack
Item no. 9B1920006
ED SDS Stack-Rack (Extra Deep Slide-Door Shockmount) with retractable lids, label holder on front lid, external lock and recessed handles. Rack rails adjustable from outside with built-in device. Cable bushing for interconnecting cables with closed lid. Dimensions (HxWxD): 336 x 600 x 780 mm.
BAGAX Wheelboard for ED SDS & SDS Stack-Racks
Item no. 9B1940000
Wheelboard for ED SDS and SDS stack rack system. With stacking trays and locking system. 4 x blue wheels (two with brakes). Load capacity 450 kg.
Schuko V6 3/6/10/15/20 m
Item no. 80325XXX4
Schuko 6-fold junction with Titanex H07RN-F 3 x 2,5 sq mm cable in various lengths. The special jacket surface assumes little dirt and is easy to clean. Even cold nor flexible. Assembled with some pressed ferrules for maximum contact area and minimal contact resistance.
XLR signal cable 0,5/3/6/10/15/20/30/50 m
Item no. 80205XXX5
XLR signal cable in different lengths with Neutrik connectors NC3FXX-B and B-NC3MXX, black housing and gold-plated contacts. Large wire diameter of 2 x 0,5 sq mm with 28 x 0.15 sq mm copper per core, 100 % shielding due to dense copper spiral turner and metallised fleece.
powerCON TRUE1-TOP 3/6/10/15/20/30/50 m
Item no. 80325XXX3
Titanex H07RN-F 3 x 2.5 sq mm cable in various lengths.The special jacket surface assumes little dirt and is easy to clean. Even cold nor flexible. Assembled with some pressed ferrules for maximum contact area and minimal contact resistance. With Neutrik powerCON TRUE1 - NAC3FX-W-TOP and NAC3MX-W-TOP device connectors.
powerCON TRUE1-TOP-Schuko 3/6/10/15/20/30/50 m
Item no. 80325XXX2
Titanex H07RN-F 3 x 2.5 sq mm cable in various lengths.The special jacket surface assumes little dirt and is easy to clean. Even cold nor flexible. Assembled with some pressed ferrules for maximum contact area and minimal contact resistance. With Neutrik powerCON TRUE1 - NAC3FX-W-TOP and Schuko device connectors.
