Info

  • 1 x 12" compact bass reflex subwoofer
  • World's flattest 12" bass with only 30 cm height
  • Horizontally and vertically stackable

The Paveosub-112 is a very compact bass reflex subwoofer intended for universal applications; as a mobile unit or in fixed installations. With a height of only 30 cm, it is the flattest 12" sub in the world and can be used where high sound pressure and deep working sound are required in constricted spaces.

The design of the flat box renders the subwoofer tilt resistant and makes for ideal use together with satellite tops on speaker rod cranks. In an upright-standing position, the Paveosub-112 forms an elegant silhouette with column loudspeakers or Line-Array-Sticks.

The 2 x 4 rubber feet on the narrow and the wide sides of the casing, each with stacking notches on opposite sides, guarantee a secure standing and no slipping. There are two integrated M20 flange nuts for mounting the Paveosub-112 in a flat-lying or upright-standing position, ensuring flexible use and an attractive look depending on the combination of top units.

The Paveosub’s stacking notches have the same footprint as the Modular-10 lying in the monitor position. Additionally, both loudspeakers have the same 52 cm measurements and optically form one unit. This arrangement constitutes a professional drum fill and is also very space saving on stage.

The extremely powerful motor (B / L factor 26) of the high-quality 12" neodymium chassis guarantees fast and accurate signal reproduction with excellent transient response. The speaker features a large -4" voice coil, a sophisticated ventilation system and a lower power compression than conventional bass drivers: As a result the amplifier performance is implemented effectively and efficiency is maintained even under permanent full scale use.

The two bass reflex ports are mounted on either side. This arrangement prevents a tumbling of the additional double-suspended membrane at high x-max as the air can escape on all sides and a uniform counter pressure is produced. The box walls have also been braced with this kind of tunnel arrangement. Other internal bracings ensure maximum stability and prevent unwanted resonance.

Two round handles, accessible from all sides and a detachable front wheel board make for easy handling.

Additionally, the Paveosub-112 can be converted in factory to the self-powered version including the 3-channel 4 kW amplifier module and DSP board.

Control

The woofer is in 8 Ω. The Paveosub-112 is powered by one channel (2.400 W/4 Ω) of HDSP-6, HDSP-4 or HDSP-3 nominal impedance is 4 Ω.

HDSP-Amplifiers contain presets to combine subwoofers with Voice-Acoustic tops. There are also presets for cardioid and bass-array application. One HDSP-6 or HDSP-4 can power up to four, one HDSP-3 up to two Paveosub-112.

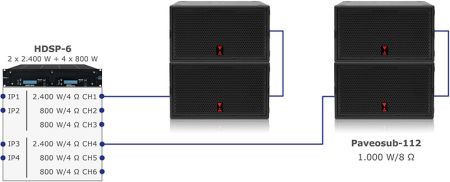

Paveosub-112 via HDSP-6
Paveosub-112 via HDSP-6

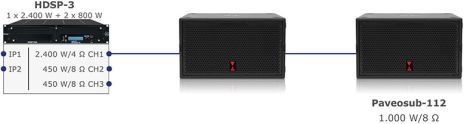

Paveosub-112 via HDSP-3
Paveosub-112 via HDSP-3

Technical Data

Drivers
1 x 12" Neodym long excursion woofer with 4" voice coil

Lower cut-off frequency
35 Hz (- 10 dB)
41 Hz (- 3 dB)

Impedance
8 Ω active separated

Powerhandling (AES / Program / Peak)
1.000 W / 2.000 W / 4.000 W

Sensitivity 1 W/1 m
96 dB SPL (half space)

Sound pressure at (AES / Program / Peak)
126 dB SPL / 129 dB SPL / 132 dB SPL

Connection
2 x NEUTRIK NL4 IN/OUT 2+/-

Finish
Polyurea coating in RAL 9005. Special colours also possible with Warnex textured paint

Dimensions / Weight
300 (H) x 520 (W) x 485 mm (D) / 23,1 kg

Downloads

Accessoires

Detachable wheelboard Paveosub-112

Item no. 501124000

Detachable wheelboard to mount on Paveosub-112/112sp, 15 mm wood with polyurea coating, stackable, 2 butterfly locks, 2 handles, 4 black wheels, engraved logo.

SP-Kit Paveosub-sp-8K4

Item no. 249108402

SP-Kit Paveosub-sp-8K4, self-powered electronic unit for retrofitting existing or used Paveosubs GEN2025 to self-powered., IN/OUT: 2 x analog, 2CH digital AES3, 8.000W, 4x 2.000W, incl. 6 m Schuko/powerCON TRUE1 cable.

SP-Kit Paveosub-sp-8K4D

Item no. 249108403

SP-Kit Paveosub-sp-8K4, self-powered electronic unit for retrofitting existing or used Paveosubs GEN2025 to self-powered., IN/OUT: 2 x analog, 2CH digital AES3, 8.000W, 4x 2.000W, incl. 6 m Schuko/powerCON TRUE1 cable.

Carrying bag big for 2 x speaker stand/ rod

Item no. 999920000

Carrying bag big, for 2 x speaker stands/speaker rods or Rolldolly outrigger, 1.200 x 190 x 290 mm.

Distance rod with crank type 213/40

Item no. 999921340

M20 Crank speaker rod type 213/40 with Ring-Lock function for clearance-free mounting in the speaker flange, high 920 - 1.520 mm, max. 35 kg load.

Telescopic rod type 213/68

Item no. 999921368

M20 Telescopic speaker rod type 213/68 extra high with Ring-Lock function for clearance-free mounting in the speaker flange, high 1.100 - 1.800 mm, max. 35 kg load.

Telescopic rod type 213/37

Item no. 999921337-9010

M20 Telescopic speaker rod type 213/37 (white), high 905 - 1.450 mm, max. 35 kg load.

Telescopic rod type 246/26 black

Item no. 999924626-9005

M20 Telescopic speaker rod type 246/26 super high (black), high 1.400 - 2.400 mm, max. 30 kg load.

Telescopic rod type 246/26 white

Item no. 999924626-9010

M20 Telescopic speaker rod type 246/26 super high (white), high 1.400 - 2.400 mm, max. 30 kg load.

Carrying bag long

Item no. 999924609

Carrying long, für 2 x telescopic speaker rod type 246/26, 120 x 19 x 29 cm, 1.420 x 200 x 140 mm.

Adapter with Ring-Lock function

Item no. 999921441

Stand adapter with Ring-Lock function, e.g. for speaker stand type 213 or distance rod type 246/26. The ring-lock function ensures a clearance-free fit in the speaker's high stand flange.

M20 Adapter 250 mm

Item no. 999921329

The 250 mm long adapter is perfectly suited as a M20 single rod or as an extension rod.

Speaker rod short type 214/47

Item no. 999921447

M20 M20 speaker rod short type 214/47 with Ring-Lock function, height 250 mm, max. 35 kg load, e.g. for tops in vertically high ground stacks on subwoofers.

Cable Clip for speaker stand/ rod

Item no. 999935000

The cable clip made of robust, durable ABS plastic is specially designed for speaker stands and distance rods with 35 - 36 mm tube. It adheres firmly to the tube and holds the cables securely and neatly in the 24 x 16 mm guide accessible from the outside.

speakON cable 0.5/1/3/6/10/15/20/30 m

Item no. 80440XXX1

Speaker cables in various lengths with Neutrik plug NL4FX. 4 x 4 sq mm, each wire 224 x 0.15 copper, diameter 11 mm, weight 273 g / m. Assembled with some pressed ferrules for maximum contact area and minimal contact resistance.

speakON adapter

Item no. 999654669

Adapter to connect two speaker cables.
