  • 10"/1" scalable multi-functional loudspeaker
  • Radiation with rotatable horn 90° x 40°
  • Horizontal array options with interference minimisation
  • Click-in flyware, tool-free flight mechanics

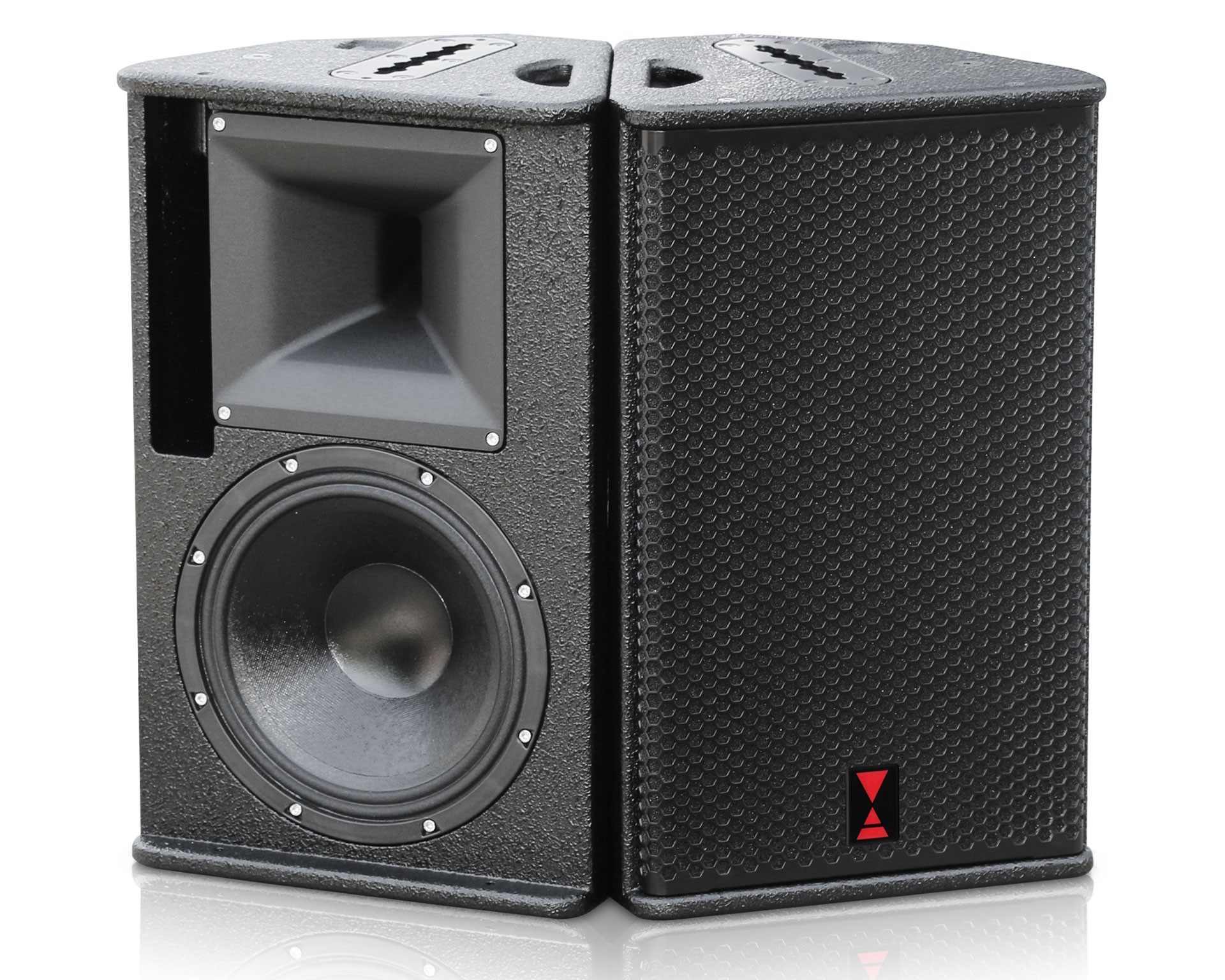

The Modular-10 is a compact and powerful multifunctional loudspeaker with high-quality 10"/1" neodymium drivers and passive crossover.

The Modular series is extremely flexible and is innovative with its combination of array point source systems and multifunctional usable individual speakers. As well as its use as a single full-range speaker, with high performance head with bass support and high-performance monitor on stage, the Modular series also designed to be used with multiple units next to each other, in a horizontal array design.

Any interference and associated sound interruptions between the sound sources are reduced to a minimum by using special housing geometry, suitable for the narrower beam angle of the rotatable horn. Each horn works only in its defined sound directivity. This technique allows the user an even greater range of applications with only one speaker model and is registered at the Patent Office.

"Easyfly", (also registered with the Patent Office), is a new ‘one-click’ mechanism which allows tool-free hanging and precise alignment in a few seconds. The mechanism is more elegant and smaller than a conventional rigging brace. The Modular series is equipped with inconspicuous mounting rails on two sides of the housing. This means the speaker can be hung or flown upright or horizontally, using the ‘Easyfly’ mechanism. At the back is a third mounting rail for the compulsory safety cable.

For accurate alignment on a stand or mounting pole, the Modular series has an internal, tilting pole socket enabling and an adjustment of +/- 18° tilt.

The Modular-10 uses a 10" chassis of the latest generation and has been specifically designed for a clean, detailed midrange with a high, undistorted sound pressure. A particularly low moving mass (mms 31g) in conjunction with the extremely powerful neodymium driver (B/L factor 20) enable a very high sound pressure. The chassis can be driven hard, and heat dissipates optimally keeping the power compression low. The magnet system use ventilation openings in. The aluminum demodulation rings in the magnet system ensure low distortion.

The Modular-10 can be installed with the ‘Easyfly’ mechanics, via the rear mountable tilt and swivel wall mount, or the 8 internal M10 thread points with steel angles.

Control

The standard horn is 90° x 40°. If two Modular-10s are to be used side by side in an array, the horn must be rotated to avoid interference.

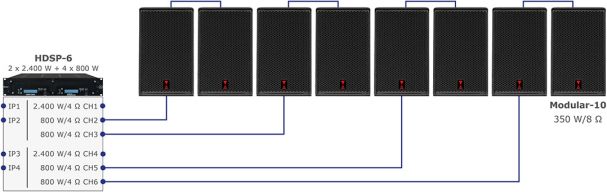

Modular-10 passive via HDSP-6
Modular-10 passive via HDSP-6

Array

The standard horn is 90° x 40°. If two Modular-10s are to be used side by side in an array, the horn must be rotated to avoid interference.

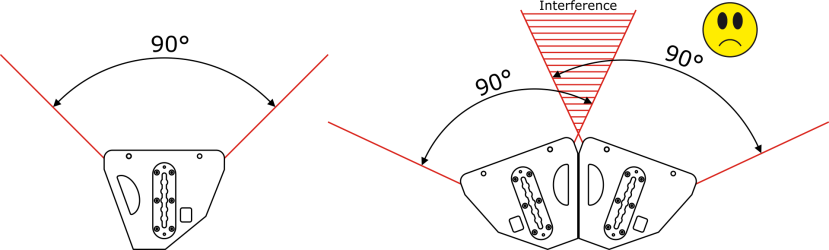

Modular with Horn 90 x 40° (v x h)
Modular with Horn 90 x 40° (v x h)
Modular with rotated 40 x 90° horn (v x h) minimisation interference
Modular with rotated 40 x 90° horn (v x h) minimisation interference

Technical Data

Drivers
LF: 1 x 10" Neodym Tiefmitteltöner mit 2,5" Schwingspule
HF: 1 x 1" Neodym Hochtöner mit 1,7" Schwingspule

Frequency range
70 Hz - 22 kHz (- 10 dB)
107 Hz - 21 kHz (+/- 3 dB)

Coverage range (h x v)
90° x 40° (rotatable and arrayable horns)

Impedance
8 Ω

Powerhandling (AES / Program / Peak)
350 W / 700 W / 1.400 W

Sensitivity 1 W/1 m
100 dB SPL

Sound pressure at (AES / Program / Peak)
125 dB SPL / 128 dB SPL / 131 dB SPL

Connection
4 x NEUTRIK NL4 IN/OUT 1+/- (4-pole looped-through)

Finish
Polyurea coating in RAL 9005. Special colours also possible with Warnex textured paint

Dimensions / Weight
520 (H) x 321 (W) x 267 mm (D) / 15,3 kg

Downloads

Accessoires

Transport and rain cover Modular-10

Item no. 500101100 | 500101200

Transport and rain cover for Modular-10, stable Cordura fabric with padding, all handles and connections are cut. The front can be folded to the side, behind it there is a sound-permeable gases as rain protection for outdoor applications.

Heavy-duty hooded flight case for Modular-10 speakers

Item no. 500103001

Heavy-duty hooded flight case for up to two Modular-10 speakers. Features include: 4 blue wheels (2 with brakes), 4 large butterfly latches, 6 large folding handles, 9 mm wood with a black, scratch-resistant surface, sturdy 35 x 35 mm edge profile with 2.5 mm material thickness and 5 mm outer radius and recessed rivet channel.
Dimensions/Weight: 724 mm (H) x 400 mm (W) x 675 mm (D) / 29.00 kg

Easyfly-mechanics

Item no. 409991001

Tool-free flight-mechanics for clicking and exact alignment of the speaker in the horizontal and vertical axis. Removable recording for example the self-lock clamp included.

Carrying bag for Easyfly-Mechanics

Item no. 409992000

Carrying bag for up to two Easyfly-Mechanics with attached truss clamp plus accessory compartment for e.g. two safetys with single studs.

Self-lock clamp

Item no. 999950731

Loudspeakers can be flown by one person with the self-lock clamp. The clamp hooks directly into the truss and can be easily tightened. Load capacity 250 kg.

Multifunctional rotating ceiling bracket

Item no. 409998001

For hanging speakers from ceilings using steel cables or chains and various accessories. Horizontal alignment due to central pivot axis. Max. load: 60 kg. Available in white and black. Supplied without further mounting accessories.

Universal suspension device for flight mechanics

Item no. 409992001

For suspending speakers from very high ceilings or trusses. Prevents speakers from twisting due to two parallel steel cables or chains and allows horizontal alignment due to central pivot axis. Suitable for Easyfly mechanics, LA-Stick flying mechanics, Ikarray-8 flying mechanics and all U- and C-brackets. Delivery without further mounting accessories.

Rotating double pipe clamp with aluminum pipe

Item no. 409992000

With this construction you can mount two speakers from the Modular series in horizontal array.

Wall console for flight hardware

Item no. 409994901

Wall mount bracket made of steel with aluminium tube for hanging loudspeakers on walls by using truss clamps and loudspeaker-specific flying hardware. The outriggers of the wall bracket have a row of holes so that the truss clamps, which hold the aluminium tube, can be repositioned. This allows the distance between the speakers and the wall to be varied. All components are black powder-coated. Delivery includes: 2 x wall console, 2 x truss clamps, 1 x 600 mm aluminium tube 50 x3 mm, 2 x plastic caps for the tube. Max. load 75 kg, static calculation available.

Speaker ceiling mount

Item no. 999924496

Robust and useful loudspeaker ceiling mount with 250 mm distance and internal cable management. The swivel area is +/-45 °. Within the parameters - the settings range from 0 to 45°. Max. load capacity: 25 kg. Available in white and black.

Tilting and swivelling wall holder

Item no. 999924481

Wall holder with large wall plate for heavy boxes. The mounted box can be swivelled sideways and tilted up to 30 °. Easy installation due to practical mounting and screwing. Max. load capacity: 25 kg. Available in white and black.

Wall mount with extension

Item no. 409994031

Wall mount with extension (180° horizontal and 30° vertical adjustment) for parallel positioning. Max. Load capacity: 25 kg. Available in white and black.

Wall holder type 173

Item no. 999924173

Wall bracket type 173, 145° swivel and 0-30° tiltable. The tilt can be fixed in 6 steps. With Ø 35 mm flange socket holder. The distance between the flange socket holder and the wall can be adjusted in four steps. The bracket is almost completely concealed by the speaker. Wall distance 499 mm, max 25 kg load. Available in black.

Tilting and swivelling wall holder XL

Item no. 999924120

Stable wall holder with tilt and swivel orientation: 180° horizontal, 22° vertical adjustable in 11 steps. Expanding mandrel for play-free seating in the tripod base of the speaker. Max. load capacity: 50 kg.

Wall- and Trussholder

Item no. 999924150

Wall- and Trussholder with a joint and a tube clamp, circa 520 mm long. Max. load capacity: 50 kg.

Single stud

Item no. 999957450

Single stud for securing a loudspeaker with safety cable.

Double-Stud Fitting

Item no. 999957401

For hanging and aligning loudspeakers with chains.

Eye Bolt

Item no. 999917370

M10 x 40 mm eye bolt is screwed into rearward mounting point and the speaker can also be secured directly to the housing with a safety cable.

Chain fastener 8 mm

Item no. 999908000

Chain fastener 8mm, for e.g. single and double-stud fittings or safetys.

Safety 6/1000

Item no. 999963100

1 m safety cable 6 mm Ø for securing a suspended loudspeaker. One side with a screwable quick connect.

Speaker stand type 213 with crank

Item no. 999921300

Speaker stand type 213 with a hand crank, high 1.385 - 2.180 mm, max. 50 kg load.

Speaker stand type 214/67 with Ring-Lock function

Item no. 999921467

Speaker stand type 214/67 with Ring-Lock function, high 1.370 - 2.170 mm, max. 50 kg load.

Distance rod with crank type 213/40

Item no. 999921340

M20 Crank speaker rod type 213/40 with Ring-Lock function for clearance-free mounting in the speaker flange, high 920 - 1.520 mm, max. 35 kg load.

Telescopic rod type 213/68

Item no. 999921368

M20 Telescopic speaker rod type 213/68 extra high with Ring-Lock function for clearance-free mounting in the speaker flange, high 1.100 - 1.800 mm, max. 35 kg load.

Adapter with Ring-Lock function

Item no. 999921441

Stand adapter with Ring-Lock function, e.g. for speaker stand type 213 or distance rod type 246/26. The ring-lock function ensures a clearance-free fit in the speaker's high stand flange.

Stand fork

Item no. 999924105

Stand fork for two tops, with expanding mandrel system which provides a tight and firm fit for the speakers. Max. load capacity: 2 x 25 kg.

Steel base plate round 45cm

Item no. 999912311

Round base plate 45 cm (black), 10 kg with extra + 5 kg weight plate for M20 speaker rods.

Carrying bag for round base Ø 45 cm

Item no. 999912399

Carrying bag for base plate 45 cm, outside dimension Ø 48 cm.

Iron base

Item no. 999926705

The iron base 55 x 55 cm has a carrying handle and a cable bushing. The base is suitable distance rods with an M20 screw thread. Weight: 13,5 kg.

Carrying bag for 55cm base plate

Item no. 999933100

Carrying bag for 55cm base plate, outside dimension 60 x 60 cm.

Carrying bag big for 2 x speaker stand/ rod

Item no. 999920000

Carrying bag big, for 2 x speaker stands/speaker rods or Rolldolly outrigger, 1.200 x 190 x 290 mm.

Cable Clip for speaker stand/ rod

Item no. 999935000

The cable clip made of robust, durable ABS plastic is specially designed for speaker stands and distance rods with 35 - 36 mm tube. It adheres firmly to the tube and holds the cables securely and neatly in the 24 x 16 mm guide accessible from the outside.

speakON cable 0.5/1/3/6/10/15/20/30 m

Item no. 80440XXX1

Speaker cables in various lengths with Neutrik plug NL4FX. 4 x 4 sq mm, each wire 224 x 0.15 copper, diameter 11 mm, weight 273 g / m. Assembled with some pressed ferrules for maximum contact area and minimal contact resistance.

speakON adapter

Item no. 999654669

Adapter to connect two speaker cables.
