Info
- 2 x 5"/1 x 1", 2-way d'Appolito multifunctional loudspeaker, bass reflex
- High range and speech intelligibility with more direct sound
- Voice and background music without separate subwoofer
- Monitor operation possible with 25° and 55°
- Tool-free mounting by means of multifunctional brackets
- A rear, decent handle makes handling easier
The Score-5 is a compact and powerful multifunctional loudspeaker for mobile applications and installation equipped with 2x5"/1" drivers. The high-quality and fully phase optimized passive crossover with full equalisation allows for use with any amplifier.
The Score-5 is a fullrange system to enable speech and background music application without additional subs. Together with one of our subwoofers it turns into an elegant high-power PA.
During development great care was taken to achieve a precise 70° x 55° directivity pattern. The 55° vertical focusing is extended downward into the lowmids through a D‘Appolito arrangement of the 5“ woofers and their acoustic coupling. Compared with other speakers of this size, This provides the Score-5 with a farther throw and better speech intellegibility due to the higher direct sound ratio.
Parallel sidewalls and narrow front dimensions (172mm width) make it perfect for nearfill application on stage edges or concealed in interiour panelling or staircases. Cabinet angles of 25° and 55° allow for flexible monitor use. Sound technicians will appreciate the linear frequency response and neutral sound alignment which results in high gain-before-feedback and an overall easier job.
The elegant and unobtrusive multi-functional bracket can be attached horizontally or vertically with Camlock connectors within seconds. These connectors are proved and tested for rigging of Movingheads in event technology business. Via bracket and adapter Score-5 can be easily angled on a pole mount in any direction. There are no modifications necessary for flying. The adapter has to be removed from the bracket and the speaker can be directly fixed to a truss. A mandatory safety with stud can be click-locked into the steel panel on the back.
The same area also provides two M6 fixing points for a rotatable and tiltable wallmount. There is another M8 thread to fix the Score-5 with the least possible gap to a truss by using a super clamp or bracket.
There is even a small concealed handle on the backside for ease of use.
All these sophisticated details and the available accessories make the Score-5 an ideal tool for almost any application.
Control
The Score-5 is a fully passive speaker with 12 Ohms impedance and can be driven by any amplifier even without DSP-controller. An aplifier channel capable of 4-Ohm minimum load can drive 3 Score-5 and a 2-ohm amplifier channel can drive up to 6 Score-5.

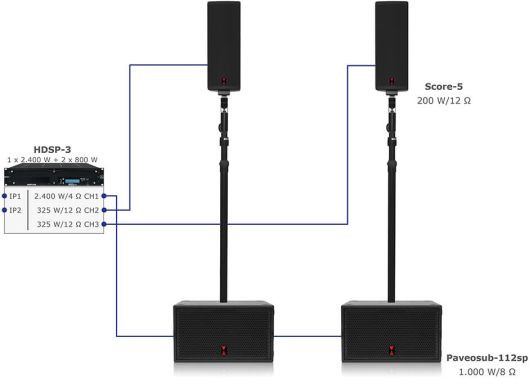

For optimal reliability and safety of operation we recommend Voice-Acoustic HDSP amplifiers or free channels of other Voice-Acoustic self-powered systems. One 800 W channel of system electronics can power up to 3 Score-5.
Technical Data
Drivers
LF: 2 x 5" Neodym woofer with 32 mm (1,25“) voice coil
HF: 1 x 1“ Ferrit compression driver with 1“ voice coil
Frequency range
71 Hz - 19 kHz (- 10 dB)
139 Hz - 15,7 kHz (+/- 3 dB)
Coverage range (h x v)
70° x 55°
Impedance
12 Ω
Powerhandling (AES / Program / Peak)
200 W / 400 W / 800 W
Sensitivity 1 W/1 m
91,5 dB SPL
Sound pressure at (AES / Program / Peak)
114dB SPL / 117 dB SPL / 120 dB SPL
Connection
2 x NEUTRIK NL4 IN/OUT 1+/- (4-pole looped-through)
Finish
Polyurea coating in RAL 9005. Special colours also possible with Warnex textured paint
Dimensions / Weight
450 (H) x 172 (W) x 190 mm (D) / 6,1 kg
Accessoires
Carrying bag for Score-5
Item no. 505002000
Carrying bag for up to two Score-5 with mounted L-bracket and additional front pocket for accessories.
Flightcase for Score-5
Item no. 505003000
Heavy-duty flightcase for up to four Score-5 including mounted L-brackets. Extra compartment for various accessories, 4 Blue Wheels, 2 large butterflys, 8 large folding handles and 4 stacking recesses in the lid. 9 mm wood with black and scratch-resistant surface, stable 35 x 35 mm edge profile with 2.5 mm material thickness and 5 mm outer radius and recessed rivet groove. Dimensions/Weight: 920 (h) x 585 (w) x 585 mm (d) / 42,5 kg.
L-bracket Score-5
Item no. 405001001
Multifunctional bracket for Score-5 speakers. The bracket is mounted on the back in seconds without tools. This is done vertically or horizontally by means of camlock connectors. With appropriate accessories, the speaker can be used on a tripod or flown upright and crosswise.
Truss clamp
Item no. 999981201-VA
Truss clamp for Score-5 L-brackets with ergonomic and larger M8 wing nut to allow more tightening force to be applied by hand.
30mm width and maximum load of 100kg, including M10 fastening screw.
Truss clamp adapter
Item no. 405001101
The truss clamp adapter has been specially developed for the Score loudspeaker's multifunction bracket. In combination with the truss clamp, the multi-function bracket can then be continuously tilted forwards or backwards, or can also be used as a wall and ceiling bracket.
Tripod transducer with threaded pin
Item no. 999924521
Tripod transducer with threaded pin M10 x 12 mm and large clamping screw for locking to the tripod. For all common speaker stands with Ø 35 mm.
C-bracket for Score-5
Item no. 405003001
Stable swivel bracket for horizontal and vertical mounting on walls or ceilings. The bracket is attached to the rear M6 mounting points.
Speaker ceiling mount
Item no. 999924496
Robust and useful loudspeaker ceiling mount with 250 mm distance and internal cable management. The swivel area is +/-45 °. Within the parameters - the settings range from 0 to 45°. Max. load capacity: 25 kg. Available in white and black.
Tilting and swivelling wall holder
Item no. 999924481
Wall holder with large wall plate for heavy boxes. The mounted box can be swivelled sideways and tilted up to 30 °. Easy installation due to practical mounting and screwing. Max. load capacity: 25 kg. Available in white and black.
Wall mount with extension
Item no. 409994031
Wall mount with extension (180° horizontal and 30° vertical adjustment) for parallel positioning. Max. Load capacity: 25 kg. Available in white and black.
Single stud
Item no. 999957450
Single stud for securing a loudspeaker with safety cable.
Eye Bolt
Item no. 999917370
M10 x 40 mm eye bolt is screwed into rearward mounting point and the speaker can also be secured directly to the housing with a safety cable.
Chain fastener 8 mm
Item no. 999908000
Chain fastener 8mm, for e.g. single and double-stud fittings or safetys.
Safety 6/1000
Item no. 999963100
1 m safety cable 6 mm Ø for securing a suspended loudspeaker. One side with a screwable quick connect.
Speaker stand type 213 with crank
Item no. 999921300
Speaker stand type 213 with a hand crank, high 1.385 - 2.180 mm, max. 50 kg load.
Speaker stand type 214/67 with Ring-Lock function
Item no. 999921467
Speaker stand type 214/67 with Ring-Lock function, high 1.370 - 2.170 mm, max. 50 kg load.
Distance rod with crank type 213/40
Item no. 999921340
M20 Crank speaker rod type 213/40 with Ring-Lock function for clearance-free mounting in the speaker flange, high 920 - 1.520 mm, max. 35 kg load.
Telescopic rod type 213/68
Item no. 999921368
M20 Telescopic speaker rod type 213/68 extra high with Ring-Lock function for clearance-free mounting in the speaker flange, high 1.100 - 1.800 mm, max. 35 kg load.
Adapter with Ring-Lock function
Item no. 999921441
Stand adapter with Ring-Lock function, e.g. for speaker stand type 213 or distance rod type 246/26. The ring-lock function ensures a clearance-free fit in the speaker's high stand flange.
Steel base plate round 45cm
Item no. 999912311
Round base plate 45 cm (black), 10 kg with extra + 5 kg weight plate for M20 speaker rods.
Carrying bag for round base Ø 45 cm
Item no. 999912399
Carrying bag for base plate 45 cm, outside dimension Ø 48 cm.
Iron base
Item no. 999926705
The iron base 55 x 55 cm has a carrying handle and a cable bushing. The base is suitable distance rods with an M20 screw thread. Weight: 13,5 kg.
Carrying bag for 55cm base plate
Item no. 999933100
Carrying bag for 55cm base plate, outside dimension 60 x 60 cm.
Carrying bag big for 2 x speaker stand/ rod
Item no. 999920000
Carrying bag big, for 2 x speaker stands/speaker rods or Rolldolly outrigger, 1.200 x 190 x 290 mm.
Cable Clip for speaker stand/ rod
Item no. 999935000
The cable clip made of robust, durable ABS plastic is specially designed for speaker stands and distance rods with 35 - 36 mm tube. It adheres firmly to the tube and holds the cables securely and neatly in the 24 x 16 mm guide accessible from the outside.
speakON cable 0.5/1/3/6/10/15/20/30 m
Item no. 80440XXX1
Speaker cables in various lengths with Neutrik plug NL4FX. 4 x 4 sq mm, each wire 224 x 0.15 copper, diameter 11 mm, weight 273 g / m. Assembled with some pressed ferrules for maximum contact area and minimal contact resistance.
speakON adapter
Item no. 999654669
Adapter to connect two speaker cables.
