Info
- 15"/1,4" scalable multifunctional Loudspeaker
- Radiation exchange with rotatable horns 90° x 60° or 60° x 40°
- Horizontal array options with interference minimisation with 60° x 40° horn
- Click-in flyware, tool-free flight mechanics
The Modular series is extremely flexible and is innovative with its combination of array point source systems and multifunctional usable individual speakers. As well as its use as a single full-range speaker, with high performance head with bass support and high-performance monitor on stage, the Modular series also designed to be used with multiple units next to each other, in a horizontal array design.
Any interference and associated sound interruptions between the sound sources are reduced to a minimum by using special housing geometry, suitable for the narrower beam angle of the rotatable horn. Each horn works only in its defined sound directivity. This technique allows the user an even greater range of applications with only one speaker model and is registered at the Patent Office.
“Easyfly”, (also registered with the Patent Office), is a new ‘one-click’ mechanism which allows tool-free hanging and precise alignment in a few seconds. The mechanism is more elegant and smaller than a conventional rigging brace. The Modular series is equipped with inconspicuous mounting rails on two sides of the housing. This means the speaker can be hung or flown upright or horizontally, using the ‘Easyfly’ mechanism. At the back is a third mounting rail for the compulsory safety cable.
For accurate alignment on a stand or mounting pole, the Modular series has an internal, tilting pole socket enabling and an adjustment of +/- 18° tilt.
The Modular-15 uses a 15" chassis of the latest generation and has been specifically designed for a clean, detailed midrange with a high, undistorted sound pressure. A particularly low moving mass (mms 100g) in conjunction with the extremely powerful neodymium driver (B/L factor 26), ensures the combination of the good transmission qualities of a 12-inch model with the large membrane surface and associated sound pressure of a 15”. The chassis can be driven hard, and heat dissipates optimally keeping the power compression low. This is enabled by the large 4" voice coil and elaborate ventilation openings in the magnet system. The aluminum demodulation rings in the magnet system ensure low distortion.
For installation, the Modular-15 is supplied with the "Easyfly" mechanics, 12 swivel wall brackets or the internal M10 thread points steel inner angles.
The Modular-15 can be subsequently converted in our factory to the self-powered version with power amplifier module and the DSP board.
Control

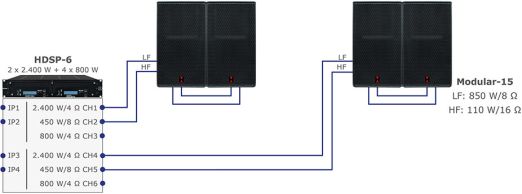

Die Modular-15 wird bi-amping an zwei Kanälen (2.400 W/4 Ω + 450 W/8 Ω) des HDSP-6 Systemverstärkers betrieben. Dadurch lassen sich beide Wege getrennt voneinander limitieren, optimal filtern, Laufzeitunterschiede ausgleichen und Wechselhörner mit verschiedenen Abstrahlwinkeln nutzen.
Der Tieftöner ist in 8 Ω der Hochtöner in 16 Ω ausgeführt.
Zwei Modular-15 können mit einem 4 pol. Kabel durch geschliffen und parallel von denselben Verstärkerkanälen betrieben werden. An einem HDSP-6 können bis zu vier Modular-15 bi-amping angeschlossen werden.
Array
For maximum flexibility the user can choose between two different beam angles 60° x 40° or 90° x 60°. An exchange of horns can be made by the bi-amping control yourself at any time. In the HDSP amplifiers series and the controller board of the self-powered subwoofer specific speaker settings are saved as presets for both viewing angle.
Technical Data
Drivers
LF: 1 x 15" Neodym woofer with 4" voice coil
HF: 1 x 1,4" Neodym compression driver with 3" voice coil
Frequency range 60°
60 Hz - 17,6 kHz (- 10 dB)
130 Hz - 17 kHz (+/- 3 dB)
Frequency range 90°
58 Hz - 17,8 kHz (- 10 dB)
122 Hz - 16.5 kHz (+/- 3 dB)
Coverage range (h x v)
90° x 60° / 60° x 40° (interchangeable, rotatable and arrayable horns)
Impedance
LF: 8 Ω
HF: 16 Ω
Powerhandling (AES / Program / Peak)
LF: 850 W / 1.700 W / 3.400 W
HF: 110 W / 220 W / 440 W
Sensitivity 1 W/1 m
LF: 100 db SPL
HF: 111 db SPL
Sound pressure at (AES / Program / Peak)
129 dB SPL / 132 dB SPL / 135 dB SPL
Connection
4 x NEUTRIK NL4 IN/OUT 1+/- (4-pole looped-through)
Finish
Polyurea coating in RAL 9005. Special colours also possible with Warnex textured paint
Dimensions / Weight
698 (H) x 431 (W) x 368 mm (D) / 27,9 kg
Accessoires
Transport and rain cover Modular-15
Item no. 501501100 | 501501200
Transport and rain cover for Modular-15 (sp), stable Cordura fabric with padding, all handles and connections are cut. The front can be folded to the side, behind it there is a sound-permeable gases as rain protection for outdoor applications.
Heavy-Duty Flightcase for Modular-15
Item no. 500153000
Heavy-Duty Flightcase for up to two Modular-15/15sp with compartments for Easyfly mechanism, self-lock clamp and safety cable. 4 blue wheels, 4 large butterflys, 8 large folding handles. 9 mm Wood with black scratch-resistant surface. Stable 35 x 35 mm edge profile 2.5 mm thick, 5 mm outside radius. Dimensions/Weight: 920 (h) x 408 (w) x 906 mm (d) / 39 kg.
Easyfly-mechanics
Item no. 409991001
Tool-free flight-mechanics for clicking and exact alignment of the speaker in the horizontal and vertical axis. Removable recording for example the self-lock clamp included.
Carrying bag for Easyfly-Mechanics
Item no. 409992000
Carrying bag for up to two Easyfly-Mechanics with attached truss clamp plus accessory compartment for e.g. two safetys with single studs.
Self-lock clamp
Item no. 999950731
Loudspeakers can be flown by one person with the self-lock clamp. The clamp hooks directly into the truss and can be easily tightened. Load capacity 250 kg.
Tilting and swivelling wall holder heavy-duty
Item no. 404004001
Wall bracket with large wall plate for heavy loudspeakers. Flat design with small distance between wall and speaker. The mounted speaker can be swiveled sideways and tilted up to 20° in 1° steps. Vertical slippage after adjustment of the tilt angle is eliminated by a hole pattern. Easy installation thanks to practical hanging and screwing. Two truss clamps can be mounted for use on vertical trusses. Max. load capacity 80 kg.
Multifunctional rotating ceiling bracket
Item no. 409998001
For hanging speakers from ceilings using steel cables or chains and various accessories. Horizontal alignment due to central pivot axis. Max. load: 60 kg. Available in white and black. Supplied without further mounting accessories.
Universal suspension device for flight mechanics
Item no. 409992001
For suspending speakers from very high ceilings or trusses. Prevents speakers from twisting due to two parallel steel cables or chains and allows horizontal alignment due to central pivot axis. Suitable for Easyfly mechanics, LA-Stick flying mechanics, Ikarray-8 flying mechanics and all U- and C-brackets. Delivery without further mounting accessories.
Rotating double pipe clamp with aluminum pipe
Item no. 409992000
With this construction you can mount two speakers from the Modular series in horizontal array.
Wall console for flight hardware
Item no. 409994901
Wall mount bracket made of steel with aluminium tube for hanging loudspeakers on walls by using truss clamps and loudspeaker-specific flying hardware. The outriggers of the wall bracket have a row of holes so that the truss clamps, which hold the aluminium tube, can be repositioned. This allows the distance between the speakers and the wall to be varied. All components are black powder-coated. Delivery includes: 2 x wall console, 2 x truss clamps, 1 x 600 mm aluminium tube 50 x3 mm, 2 x plastic caps for the tube. Max. load 75 kg, static calculation available.
Tilting and swivelling wall holder XL
Item no. 999924120
Stable wall holder with tilt and swivel orientation: 180° horizontal, 22° vertical adjustable in 11 steps. Expanding mandrel for play-free seating in the tripod base of the speaker. Max. load capacity: 50 kg.
Wall- and Trussholder
Item no. 999924150
Wall- and Trussholder with a joint and a tube clamp, circa 520 mm long. Max. load capacity: 50 kg.
Single stud
Item no. 999957450
Single stud for securing a loudspeaker with safety cable.
Double-Stud Fitting
Item no. 999957401
For hanging and aligning loudspeakers with chains.
Screwable quick connect
Item no. 999908000
Screwable quick connect member for e.g. single and double stud fittings or safetys.
Safety 6/1000
Item no. 999963100
1 m safety cable 6 mm Ø for securing a suspended loudspeaker. One side with a screwable quick connect.
Speaker stand crank
Item no. 999921300
Stable stand for cranking with double protection against falling. Height: 139 to 218 cm. Max. load capacity: 50 kg.
Speaker stand
Item no. 999921467
Stable stand with expanding mandrel system which provides a tight and firm fit for the speaker. Double protection against falling. Height: 132 - 220 cm. Max. load capacity: 50 kg.
Distance rod with crank
Item no. 999921340
Distance rod for cranking with expanding mandrel system which provides a tight and firm fit for the speaker. Height: 92 - 152 cm. Max. load capacity: 50 kg.
Telescopic rod
Item no. 999921368
Telescopic rod with expanding mandrel system for play-free seating in the tripod base. Height: 110 to 180 cm. Max. load capacity: 35 kg.
Ring-Lock adapter
Item no. 999921441
Adapter for mounting on stands or speaker rods. With Expanding mandrel system which provides a tight and firm fit for the speaker.
Carrying bag for 2 x speaker stand/ rod
Item no. 999920000
Carrying bag for two speaker stands or distance rods, also with crank. Two inside compartments with zipper and sturdy handles. Material waterproof nylon.
1.4" Horn 60° x 40°
Item no. 999991464
1.4" removable horn with 60° x 40° radiation, rotated at 40° x 60°. Stable cast aluminium thus not cancel the driver unit possible. Through the bi-amping concept can select the appropriate preset for different horns and change at any time in the HDSP amplifiers and self-powered subwoofers.
1.4" Driver unit 60° x 40°
Item no. 999141464
1.4" removable horn and high-frequency driver with 60° x 40° radiation, rotated at 40° x 60°. Saves in frequent changes of horns dismantling the high-frequency driver.
1.4" Horn 90° x 60°
Item no. 999991495
1.4" removable horn with 90° x 60° radiation, rotated at 60° x 90°. Stable cast aluminium thus not cancel the driver unit possible. Through the bi-amping concept can select the appropriate preset for different horns and change at any time in the HDSP amplifiers and self-powered subwoofers.
1.4" Driver unit 90° x 60°
Item no. 999141495
1.4" removable horn and high-frequency driver with 90° x 60° radiation, rotated at 40° x 60°. Saves in frequent changes of horns dismantling the high-frequency driver.
Cable Clip for speaker stand/ rod
Item no. 999935000
The cable clip made of robust, durable ABS plastic is specially designed for speaker stands and distance rods with 35 - 36 mm tube. It adheres firmly to the tube and holds the cables securely and neatly in the 24 x 16 mm guide accessible from the outside.
speakON cable 0.5/1/3/6/10/15/20/30 m
Item no. 80440XXX1
Speaker cables in various lengths with Neutrik plug NL4FX. 4 x 4 sq mm, each wire 224 x 0.15 copper, diameter 11 mm, weight 273 g / m. Assembled with some pressed ferrules for maximum contact area and minimal contact resistance.
speakON adapter
Item no. 999654669
Adapter to connect two speaker cables.
